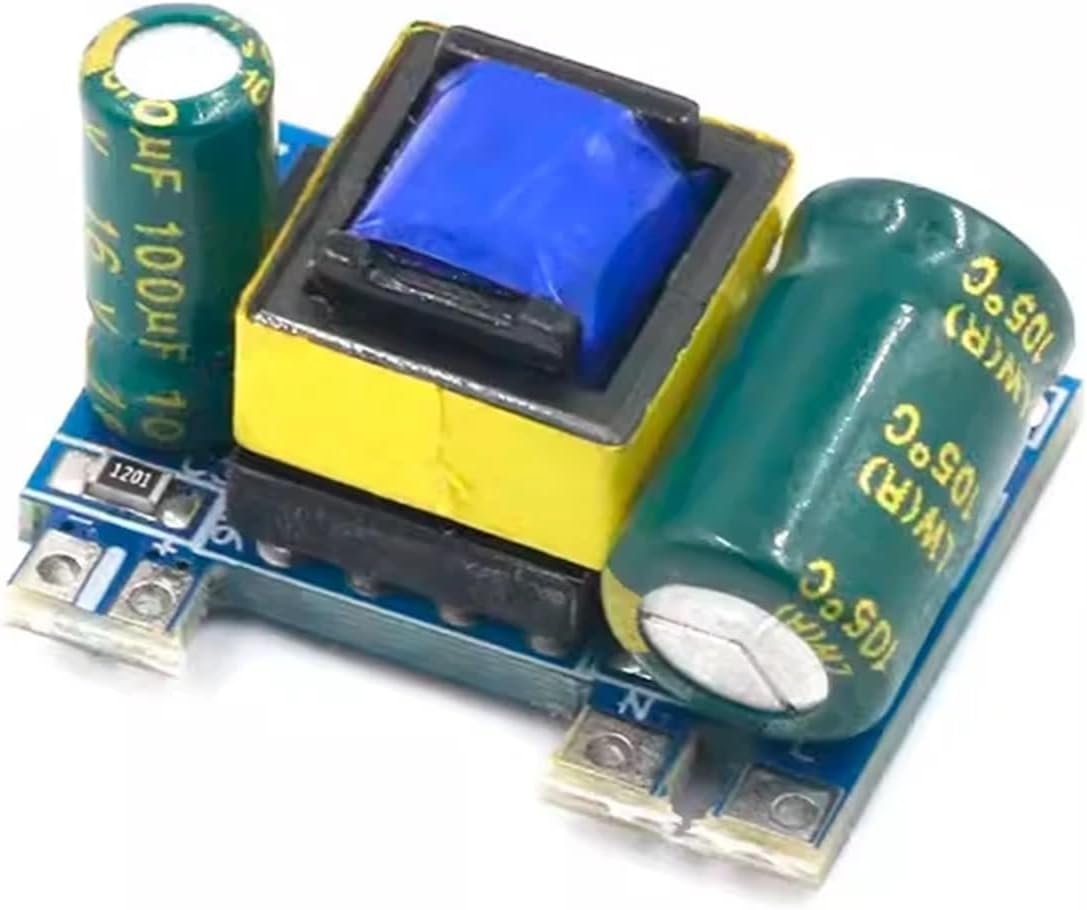

1-10PCS AC-DC 220V to 5V Step Down Converter 5V 700mA Isolated Switching Power Module 3.5W Buck Regulator Precision Power Module(5V 700mA(3.5W),5PCS)

ModulesPrecision 5V700mA 3.5W isolating switching power supply module 220 rpm 5V power supplyOperating temperature: -20 degrees to 70 degrees, the temperature resistance of the green gold capacitor is 105 degrees for 10,000 hours, more than 5 years at 70 degrees, about 20-50 years at room temperature (it is not recommended to use it above 70 degrees), and the output filter is a high-quality solid-state capacitorInput voltage range: AC50V-277V DC70V-390V<;0.05W Full load power: 4WOutput characteristics: Multiple modules with the same voltage can be used in parallel to meet the needs of small space and large current.Output voltage: 5V +-0.15V no load and full load, light load minus 0.1V, heavy load rise, 50% load ripple 60mVOutput current: 5V0mA-700mA, enter constant current working mode when full loadTest resistance: 7 ohms (4.9V) for 5VOutput indicator: GreenOutput power: 3.5W Efficiency: 80%Output protection: over-voltage, over-current, over-temperature, over-work, short-circuit protection, etc.Operating temperature: -20 degrees to 70 degrees, the temperature resistance of the green gold capacitor is 105 degrees for 10,000 hours, more than 5 years at 70 degrees, about 20-50 years at room temperature (it is not recommended to use it above 70 degrees), and the output filter is a high-quality solid-state capacitorInput Characteristics:Input voltage range: AC50V-277V DC70V-390V<;0.05W Full load power: 4WOutput characteristics: Multiple modules with the same voltage can be used in parallel to meet the needs of small space and large current.Output voltage: 12V -0.05+0.3V no-load and full load, light load minus 0.1V, heavy load rise, 50% load ripple 100mVOutput current: 12V0mA-300mA, enter constant current working mode when full loadTest resistance: 40 ohms (12V) for 12VOutput indicator: GreenOutput power: 3.5W Efficiency: 80%Output protection: over-voltage, over-current, over-temperature, over-work, short-circuit protection, etcFeatures:The product is easy to install, and the input and output can be soldered to 5.08 terminals or pins.There are mounting fixing holes at the four corners, which can be fixed with screws to prevent movement or vibration, and the diameter of the fixing holes is 3mmThe global universal input voltage AC100V-265V has strong versatility.High efficiency, strong design density, small size, easy installation, and extremely low output ripple.Inputs are highly isolated from outputsOverload, short circuit, and over-temperature protection are all availablePower protection: overload, short circuit, and over-temperature protectionVoltage input: AC100V-265VFrequency input: 50HZ-60HZOutput voltage: DC12VOutput Current: Rated 2A Peak 4A ProtectionOutput power: 24WOverall size: length 6.9cm * width 3.6cm * height 2.5cm==========Type : Power SupplyHign-concerned Chemical : Noneis_customized : YesModel Number : AC-DCOutput Type : SINGLEOrigin : Mainland China

• Modules
• 1-10PCS AC-DC 220V to 5V Step Down Converter 5V 700mA Isolated Switching Power Module 3.5W Buck Regulator Precision Power Module
